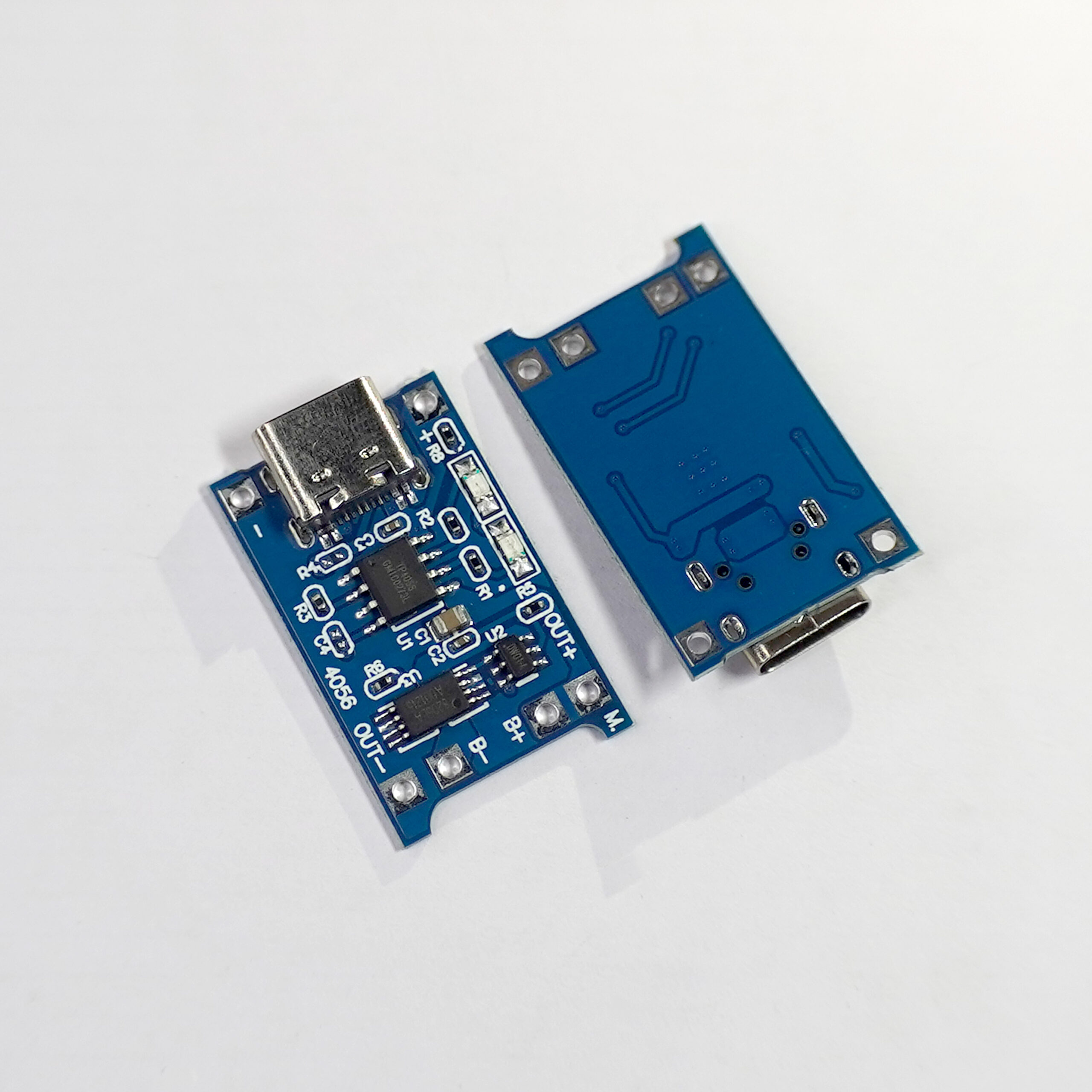

TP4056 Module with USB Type C and Battery Protection

TP4056 Module with USB Type C and battery protection circuit. It is a Low cost lithium battery charger with inbuilt battery protection that could save and extend the life of lithium battery. It can be used to charge Lithium Ion, Lithium polymer batteries that works with single series or 1S configurations. The supported battery voltage is 3.2V-4.2V where the 3.7V is nominal. It can charge Lithium batteries upto 1A and the charge current can be changed by changing the charge current set resistors available here.

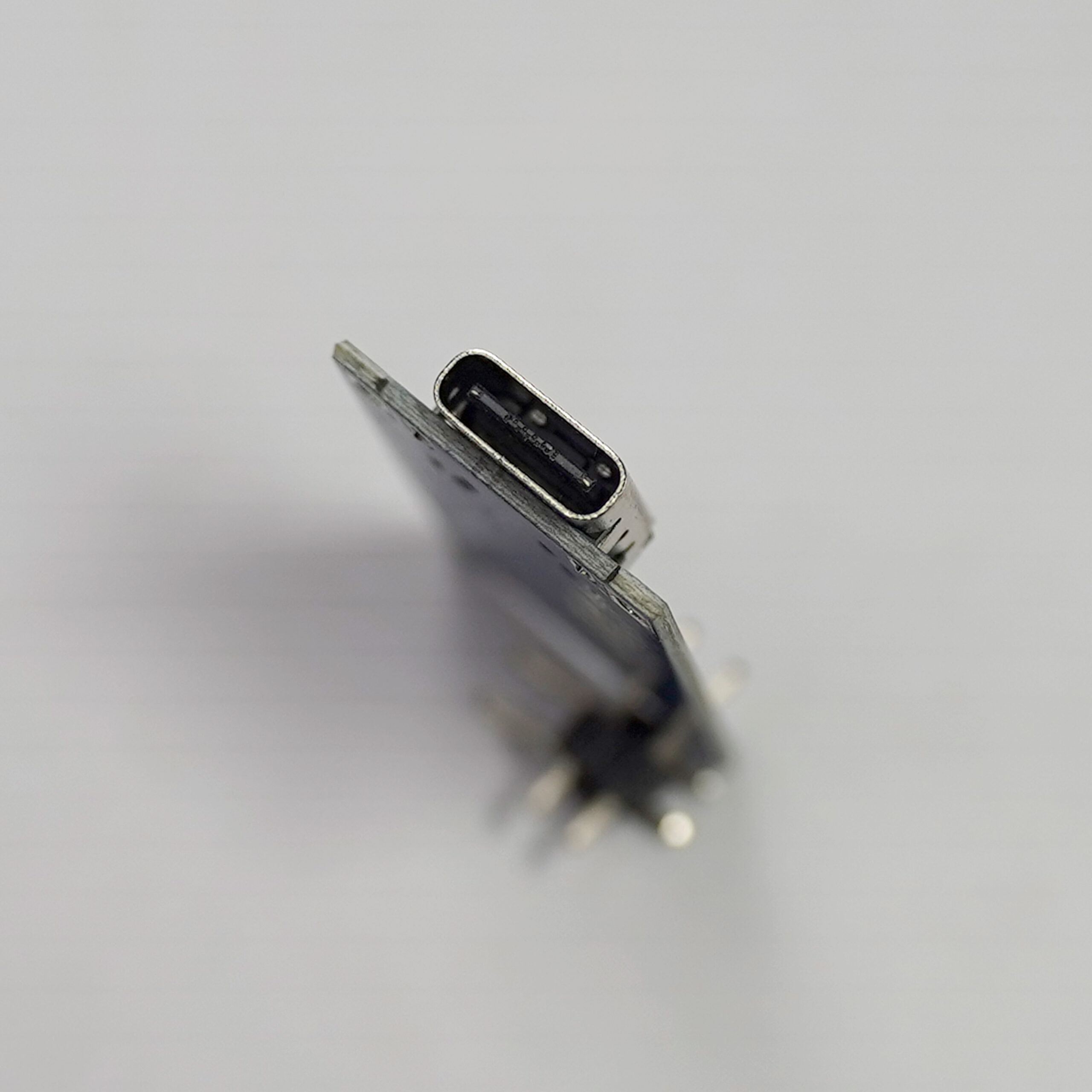

The input to this module is a USB Type C board.

We also have TP4056 ICs in stock. To order TP4056 IC only, check the link below –

Purchase TP4056 1A Li-Ion Charger IC

TP4056 Module with USB Type C and Battery Protection Features

1. Supports USB C
2. Inbuilt Battery Protection circuit for 1S Lithium ion or polymer batteries.
3. Charge current is up to 1A which can be configurable by changing charge current setting resistors.
4. Battery charging and Full charge indicators. Red for charging and Green for fully charged condition.
5. Over current, Low battery discharge, empty battery charging protections, all are included inside the battery protection chips.
6. 92% Average Efficiency

Package Contains:

1x TP4056 Module
