USB QC/PD/AFC Trigger-Decoy Board module – 12V

Availability:

163 in stock


12V | PD/QC/AFC|100W

199.00 (Inc. GST 18%)

163 in stock

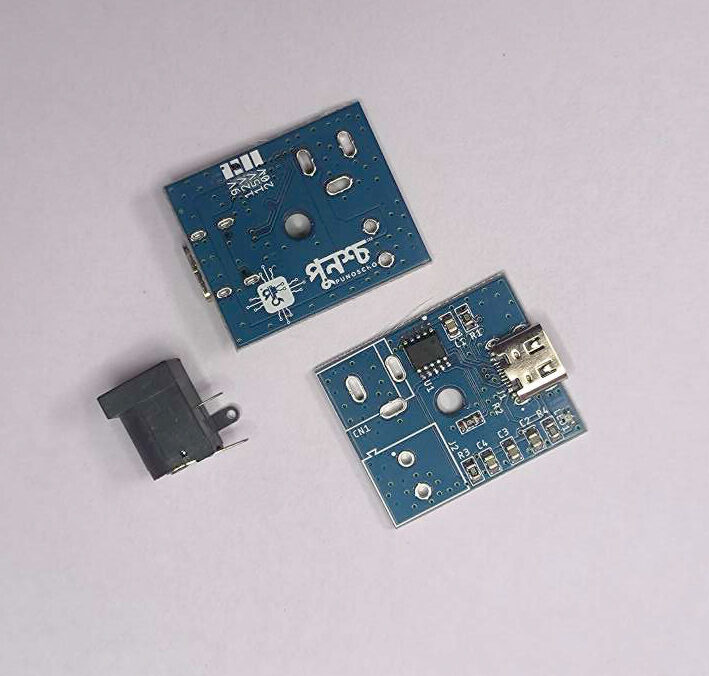

USB PD Trigger board having QC/PD/AFC Enabled Decoy module (12V only)

12V Fixed voltage USB QC PD AFC Module 12V Fixed voltage USB QC PD AFC Module



USB PD chargers are getting common nowadays. Do you want to use your QC, PD, or AFC-enabled chargers to power devices other than the phone? This board or module is perfect for you to retain in your lab or project box. Literally, you can power anything using your mobile chargers.

This module supports triggers to convert your chargers to a 12V output Source. The maximum Power Output it can handle is 100W, thanks to the high current rated copper plane, reducing the heat generation and better thermal conductivity.

You can solder wires to this board or use screw terminals to connect custom wires and connectors. It is a one stop solution for all type of 12V applications. You can connect 12V DC Barrel connector in this module.

The DC Barrel Connector and the Screw Terminal are included in the package, however, it is not soldered.

Also please note: This USB PD Module Board comes with a USB 3.1 Generation USB Type-C Connector.


We also offer Soldering Services for this Board. If you want to add soldering of the Pins, DC Barrel Connector (with External Wires), Screw Terminals etc, Please add the Soldering Services. We will do it before dispatching.

This Board Already comes with the DC connector. If you want to solder DC connector with this board, you do not need to purchase anything extra. Just add the soldering services.

For the Screw Terminal, you need to purchase the screw terminal with 5.08mm Pitch.

Link of the Connector: Purchase 2 Pin Screw Terminal 5.08mm Pitch

Link: Soldering Services for Development Boards

9V 12V 15V 20V USB QC PD AFC Fixed Voltage Module


For Other Fixed Voltage USB QC PD Trigger Module, Kindly Refer the link Below:

9V Link: USB PD QC AFC 9V Trigger Module

15V Link: USB PD QC AFC 15V Trigger Module

20V Link: USB PD QC AFC 20V Trigger Module

Adj Version Link: USB PD QC AFC All voltage Trigger Module


Features:

  1. Supports voltage range of 12V.
  2. USB PD/QC/AFC fast charger supports with 100W output capabilities using USB 3.1 Generation USB C Connector.
  3. Stable and all supported code are already encoded
  4. Built in protection features
  5. 25mm x 30mm small size
  6. Fixed Voltage (12V). For other voltages kindly check the catalog.
  7. Having PWR LED – Green
  8. High Thermal conductivity
  9. Superior large copper plane for current to pass.
  10. Good quality FRC4 PCB Board.

Design Related document of USB-PD-12V Trigger Board –


Package Contains:

1x USB PD Trigger Board (12V)
1x DC Barrel connector

SKU: PU-PROD-03 Categories: , Tags: , ,
Weight 0.01 g
Sub Type

USB PD Sink
