120watt USB PD Two way Fast charging Module Board

Availability:

9 in stock


120Watt | Two Way | Power Bank Module

1,639.00 (Inc. GST 18%)

9 in stock

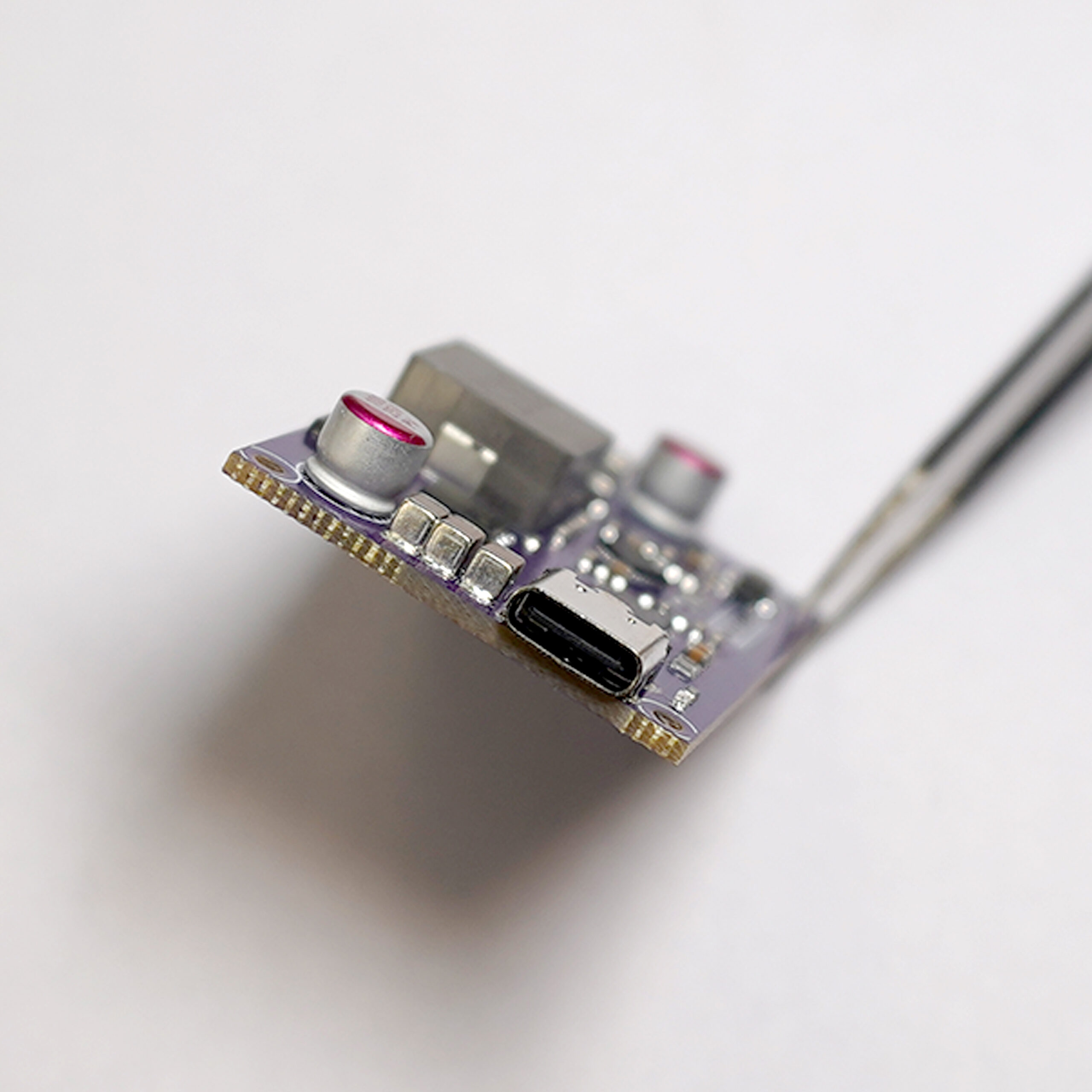

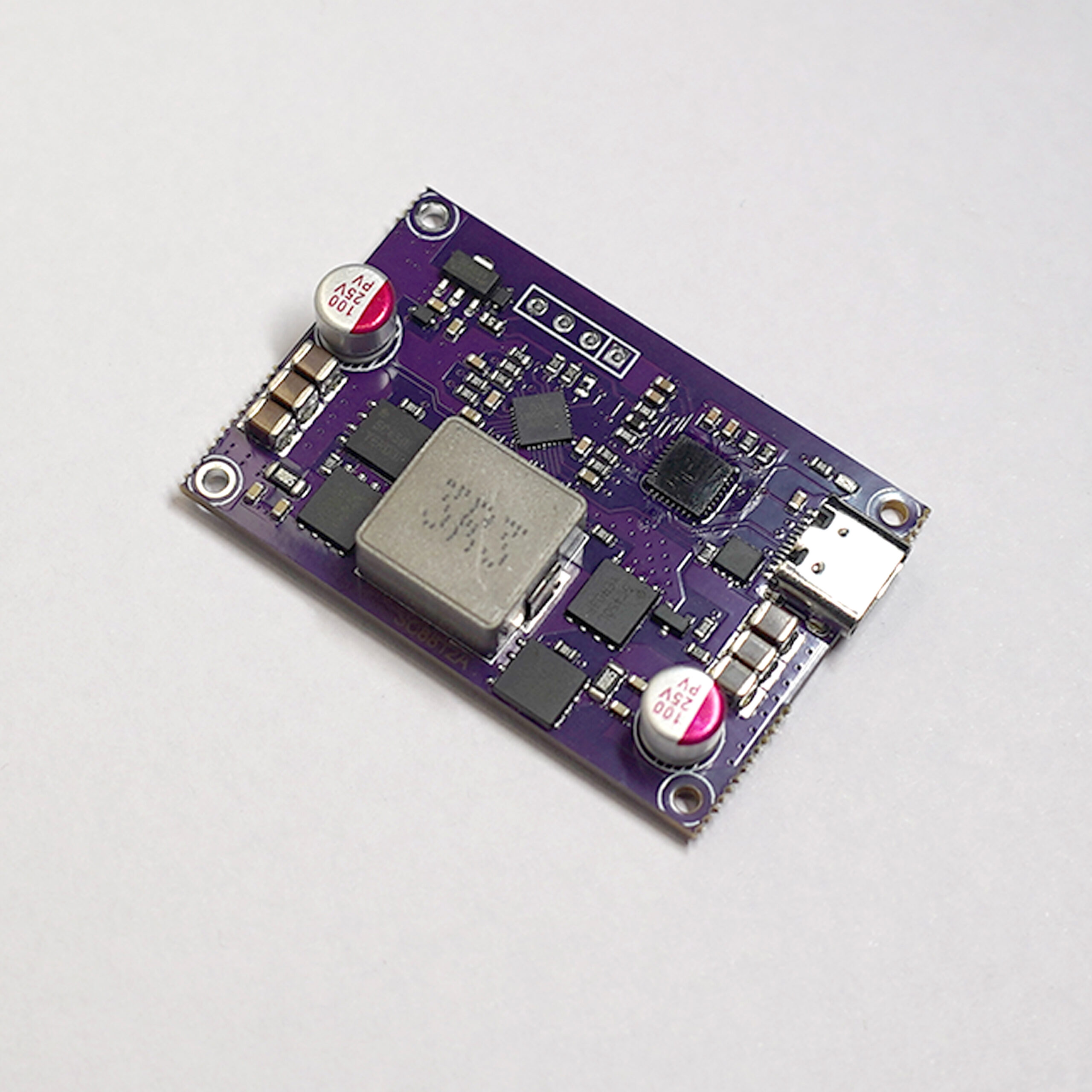

120watt USB PD Two way Fast charging Module Board

This is a 120Watt USB PD Two way Fast charging module board that uses single USB C to acts as both source and sink operations. Due to this, the Module board can be used as an USB Power Bank with 120Watt rating where a simple battery is needed. This module could charge the battery in Fast charging rate as per Power Delivery method and that same USB can be used to source power to other devices.

KEEP ATTENTION ON BATTERY POSITIVE AND NEGATIVE TERMINAL.



Bidirectional Two way 120W fast charging module

120watt USB PD Two way Fast charging Source Sink Module Board

  1. Bidirectional PD sink and Source
  2. Supports Fast charging protocols
  3. Stable and all supported code are already encoded
  4. Built in protection features – Overvoltage, Undervoltage, Short Circuit etc.
  5. 95% Average Efficiency
  6. Supports wide range of charging voltages – 9V, 12V, 15V, 20V
  7. Good quality FRC4 PCB Board.
  8. Need 4S battery across the input. Always make sure you are using BMS for 4S batteries for optimal efficiency and longivity of the battery.

How to use 120watt USB PD Two way Fast charging Source Sink Module Board

It is worth to mention that this board supports 4S battery. Always remember in 4S configuration the battery voltage should be 3.2V x4 to 4.2V x 4 which is 12.8V to 16.8V.

If the battery voltage is lower than the 12.8V, this board will not make the charging due to undervoltage protection. If the battery voltage is more than 16.8V it will trigger the overvoltage protection and stop charging or discharging.

Be sure to have battery voltage range between 12.8V-16.8V. This will make the board work properly. We have already tested this board against different smartphone from Samsung, MI and even with PD supported laptops. This board worked as it is.

Check the below video of testing and usage of 120Watt Bidirectional USB PD Module


List of Supported BMS for this module that can be used to protect the battery –

Purchase 4S 30A BMS for 16.8V Batteries

If you want to purchase IP2368 based 100W Bidirectional Module Board, Kindly follow the link below –

Purchase IP2368 Bidirectional 100W USB PD/QC/AFC Fast Charging Module


Package Contains:

1x 120watt USB PD Two way Fast charging Source Sink Module Board
