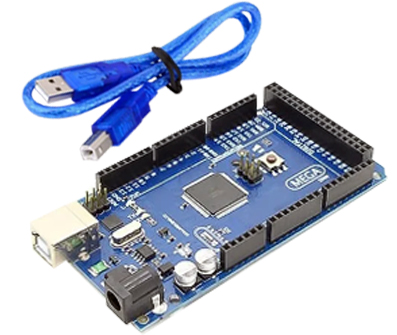

Arduino MEGA 2560 with USB Cable

The Arduino MEGA 2560 is a robust development board powered by the ATmega2560 microcontroller. Designed for complex projects, it offers 54 digital I/O pins, 16 analog inputs, and 4 serial communication ports (UARTs). The board includes a 16 MHz crystal oscillator, USB connection, power jack, and reset button. It is compatible with most Arduino shields designed for the Uno and supports all standard Arduino software libraries.
This kit includes a USB cable for plug-and-play operation and programming via the Arduino IDE.

Specifications Arduino MEGA 2560 with USB Cable –

• Microcontroller: ATmega2560

• Operating Voltage: 5V

• Input Voltage (recommended): 7–12V

• Input Voltage (limits): 6–20V

• Digital I/O Pins: 54 (of which 15 provide PWM output)

• Analog Input Pins: 16

• DC Current per I/O Pin: 20 mA

• DC Current for 3.3V Pin: 50 mA

• Flash Memory: 256 KB (8 KB used by bootloader)

• SRAM: 8 KB

• EEPROM: 4 KB

• Clock Speed: 16 MHz

• USB Connection: Type B (Cable Included)

• Dimensions: 101.52 mm x 53.3 mm

• Weight: Approx. 37g

Applications Arduino MEGA 2560 with USB Cable –

• Robotics and automation systems

• IoT and home automation projects

• 3D printers and CNC machines

• Sensor networks

• Data logging and communication systems

Design Resources –

Arduino MEGA 2560 Datasheet

Package Information

1. 1x MEGA 2560
2. 1x USB Cable
