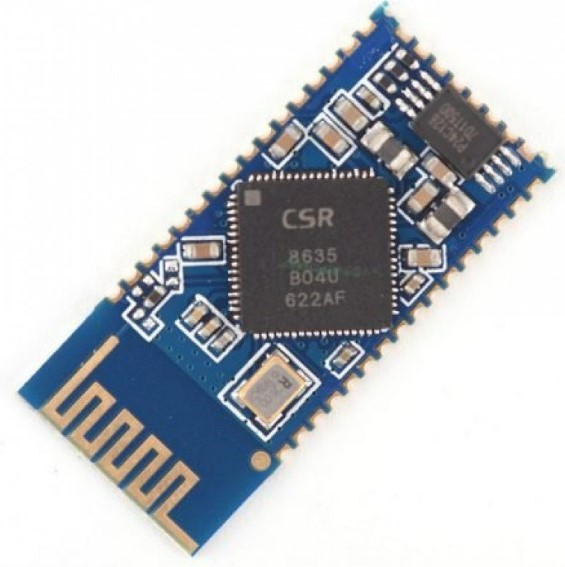

CSR8635 Bluetooth 4.0 Stereo Audio Receiver Board Speaker Module

Powered with CSR8635 from Qualcom, it is a Bluetooth V4.0 Stereo Audio Receiver Board Speaker module which requires minimum components to create a Bluetooth Speaker module. This module is having pre installed firmware.

Not only this, The Antenna is pre inbuilt, having 128K EEPROM. It is a simple Bluetooth Module that can easily convert Old sound system as Bluetooth enabled Sound module, or create Bluetooth enabled Headset, Bluetooth Card deck kit, Stereo Bluetooth Speaker etc.

This module is having options to connect answering, volume + and -, play / pause, previous, next etc features.

Feature of CSR8635 Bluetooth 4.0 Stereo Audio Receiver Module-

1. Bluetooth V4.0
2. Features Inbuilt Antenna, good RF distance
3. 128K EEPROM
4. AUX Input function
5. No programming required. Pre enabled program included

6. Built-in DSP
7. Features SPI for integrations
8. MIC Input available
9. Easily convertible
10. USB Sound card option enabled

Tips from Expert for advance users of CSR8635 Bluetooth V4.0 Audio Module-

1. Carefully Select the Power Supply, use clean, adequate Power Supply
2. Use Differential Op-amp to get the Output of the audio

Package Information

1. 1x CSR8635 Bluetooth V4.0 Audio Module
