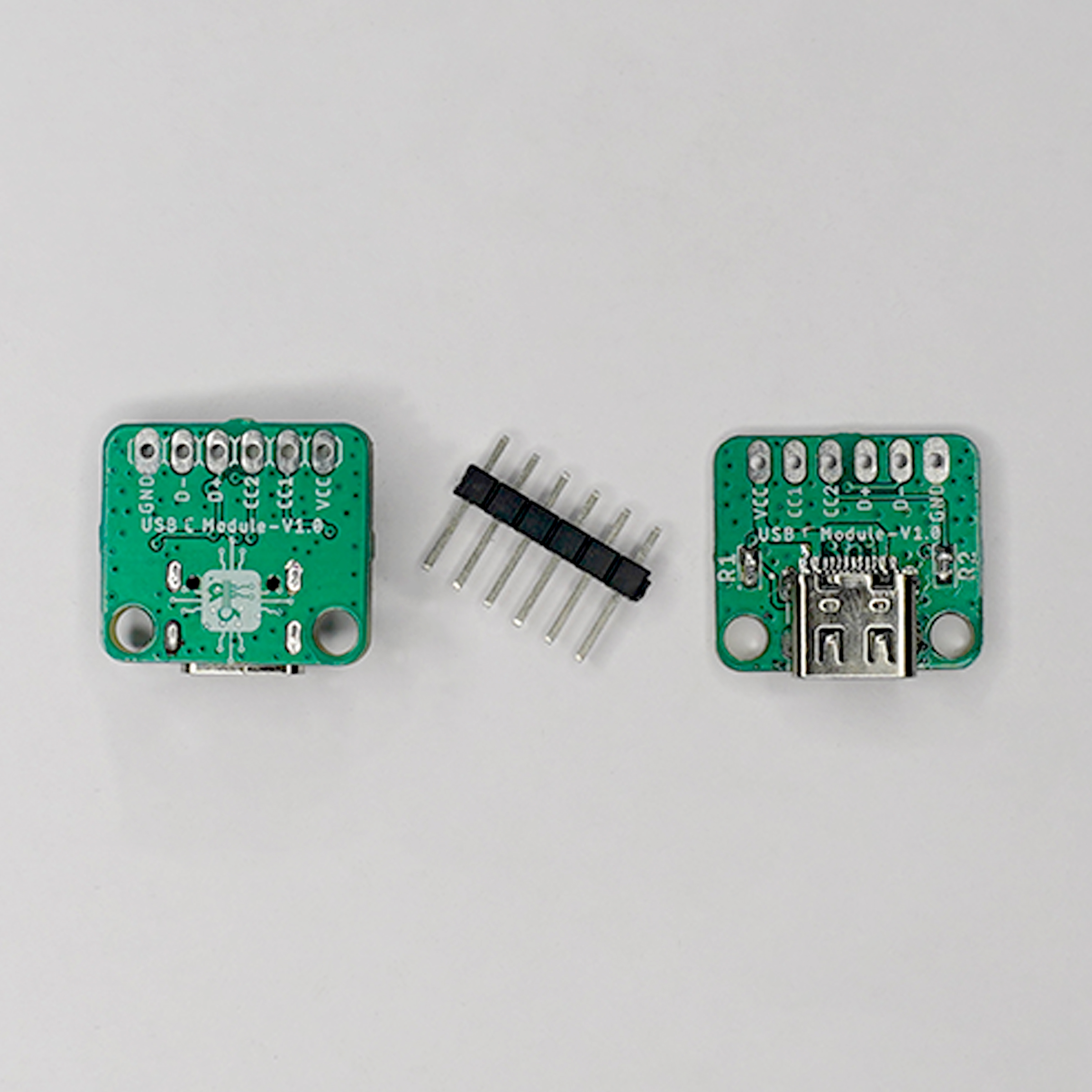

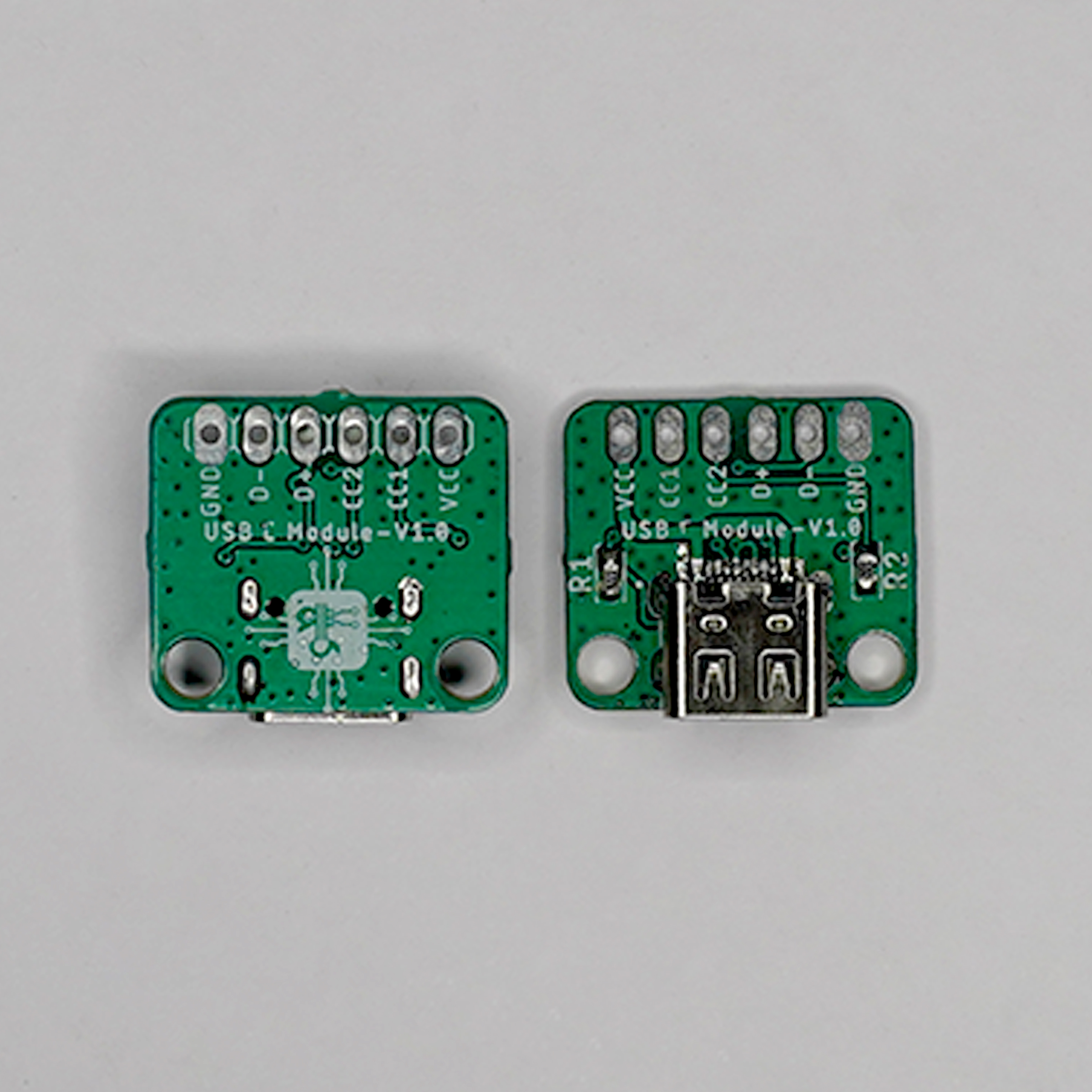

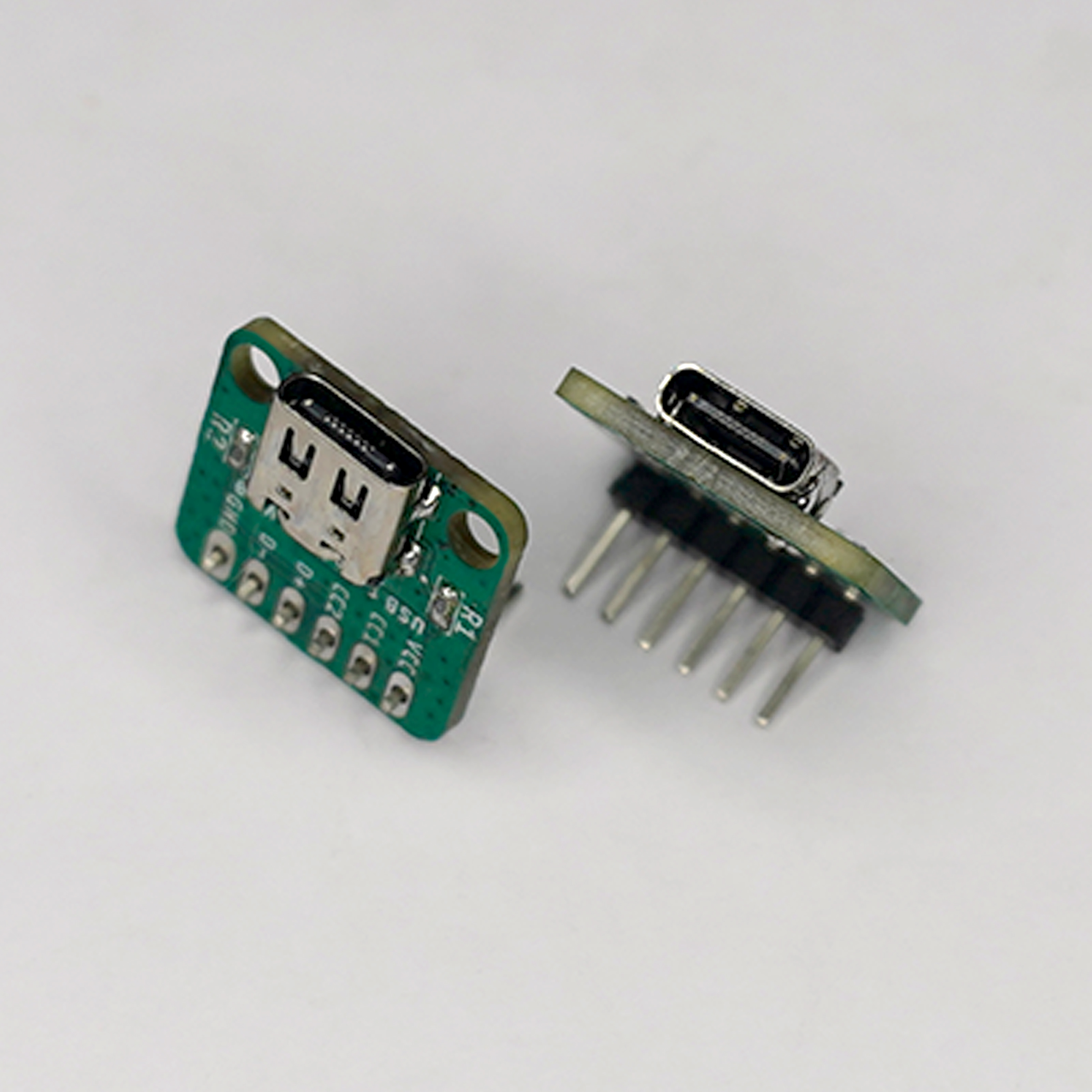

USB Type-C Female Breakout Module Board

This is a USB Type-C Female Breakout Module is a compact board with a USB type C female connector that exposes its pins to solder pads or header pins for easy access during prototyping. This board also supports breadboard friendly operations.

Features of USB Type-C Module Board –

1. Type-C female socket on the board.
2. Pin headers or solder pads breaking out USB-C pins like  VCC(5V),GND,D+/D-(USB 2.0 data lines),CC1/CC2 (Configuring Channels) , and sometimes USB 3.0 pins.
3. The board comes with 2 5.1K resistors preinstalled for downstream port/upstream port operations.
4. The tracks are well maintained to support high current on VBUS line and the USB lines are impedance controlled along with length matching for high speed operations.

Package Contains –

1x USB C Female Module Board
