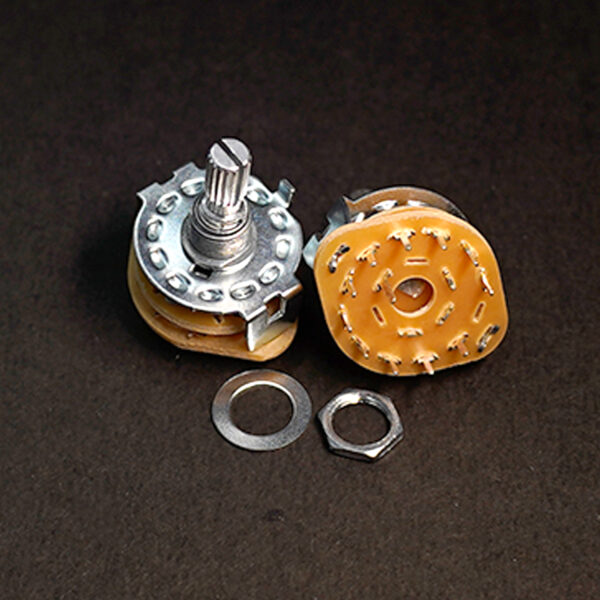

1 POLE 11 Way SR2512F Rotary Switch

This is a Rotary Switch having Single Pole 11 Position or segment. It can be configured as 1 OFF and 10 ON States. Easily configurable and long life Industrial Rotary Switch.

Features of 1 Pole 11 Way Rotary Switch-

1. Single Pole
2. 11-Way Rotary Switch
3. Voltage Rating : DC 125V
4. Current Rating – 0.3A
5. Change Over Angle – 30 Degree Shift.
6. Timing: Shorting or Not Shorting

Attribute of the 1 Pole 11 Way Rotary Switch –

MFR- Alpha Taiwan

MFR-PN- SR2512F-0111 SP 11 PS

Design Related document of the SR2512F Rotary Switch –

Datasheet of SR2512F Rotary Switch – Datasheet

Eagle Library – SR2512F

Package contains of 1 Pole 11 Way Rotary Switch –

1x 1Pole 11S
