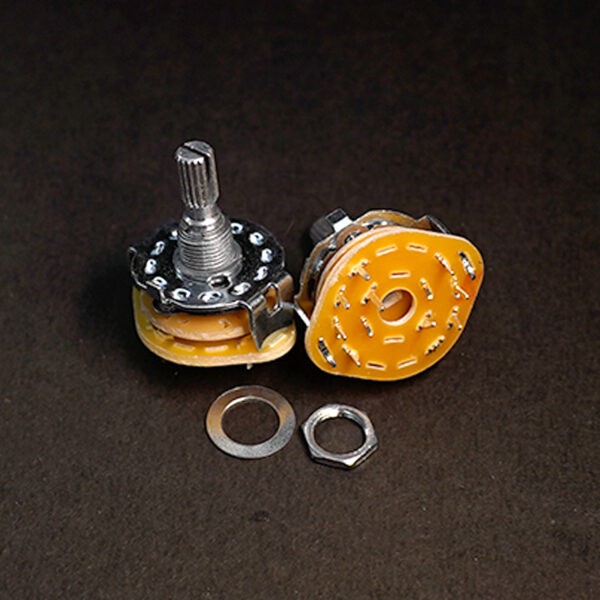

2 Pole 4 Way Rotary Switch SR2512F

This is a Rotary Switch having Single Pole 4 Position or segment with the 2 Pole construction. It can be configured as 2 Pole based 4 different States. Easily configurable and long life Industrial Rotary Switch.

Features of 2 Pole 4 Way Rotary Switch-

1. Double Pole
2. 3-Way Rotary Switch
3. Voltage Rating : DC 125V
4. Current Rating – 0.3A
5. Change Over Angle – 30 Degree Shift.
6. Timing: Shorting or Not Shorting

Attribute of the 2 Pole 4 Way Rotary Switch –

MFR- Alpha Taiwan

MFR-PN- SR2512F-0206-19R0B-E9-N-W-159

Design Related document of the SR2512F Rotary Switch –

Eagle Library – SR2512F

Package contains of 2 Pole 4 Way Rotary Switch –

1x 2P4S Switch
