from 5 pcs.from 15 pcs.from 29 pcs.
95.00 94.0095.00 93.0095.00 92.00
,

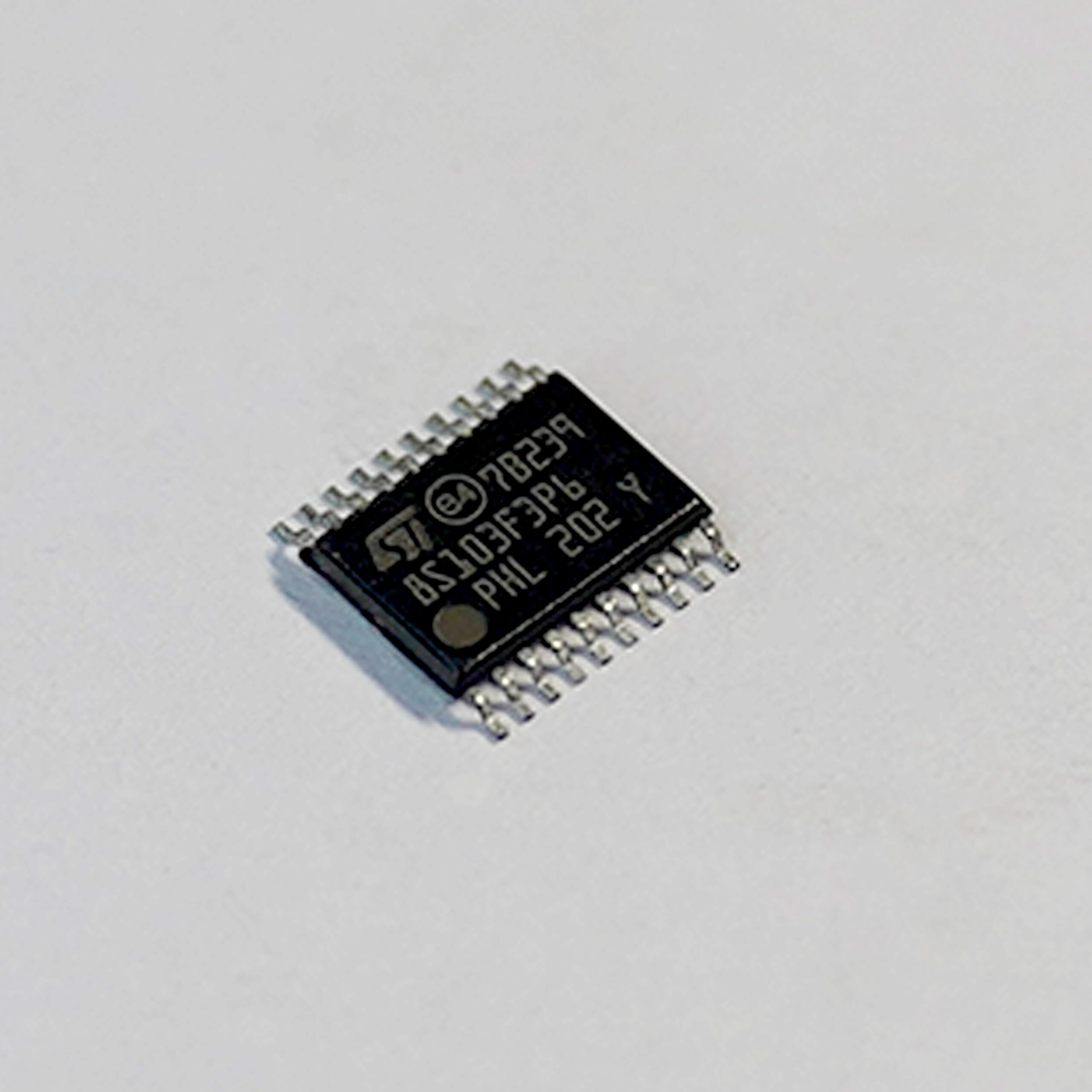

STM8S103F3P6 8-bit microcontroller

Availability:

19 in stock


ST Microcontroller IC with 8-Bit architecture, 16MHz speed, 8KB (8K x 8) FLASH and 20-TSSOP package.

95.00 (Inc. GST 18%)

19 in stock

STM8S103F3P6 8-bit microcontroller

STM8S103F3P6 is a 16 MHz, STM8 Core based microcontroller unit. It consists of 8Kb Flash and 1 Kb RAM. It is having a wide operating voltage range from 2.95 to 5.5V. Thus, making it suitable for both 3.3V and 5V logic operations. It already includes internal clock source.

Specification of STM8S103F3P6

  1. 4x Advanced Control time of 16 bits
  2. 4x 16 bit general purpose timer
  3. 1×8-bit basic timer with 8-bit preschooler
  4. Window Watchdog timer
  5. 1x UART
  6. 1x SPI – 8 Mbit/s
  7. 1x I2C up to 400 kbit/s
  8. 10-bit ADC with 5 channels
  9. 28 x IO Pins which includes 21 high sink outputs.
  10. 96-bit unique key for each device

Components Information

Manufacturer Part Number – STM8S103F3P6

Manufacturer Name – STmicroelectronics

Package – 20-TSSOP


STM8S103F3P6 schematic and libraries





Package Information

  1. 1x STM8S103F3P6 Microcontroller



SKU: PU-131 Categories: ,
Weight 0.1 g
Type

IC

Sub Type

MCU

Pin Count

20
