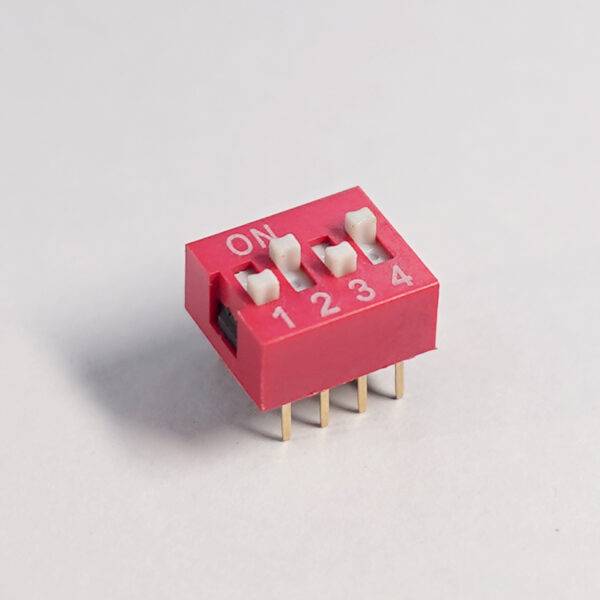

4 Way DIP Switch

A 4 Way DIP Switch is a compact, manual configuration switch featuring four individual on/off toggle positions. Commonly used for setting device addresses, enabling or disabling hardware features, and selecting modes in embedded systems, communication modules, and digital electronics. It provides a reliable, low-profile solution for configurable hardware settings without requiring software programming.

Specifications of  4 Way DIP Switch –

• Type: 4-Way DIP Switch

• Switch Positions: 4

• Actuator Style: Slide / Piano type

• Contact Rating: 24V DC (typical)

• Pitch: 2.54mm (0.1″)

• Operation Mode: SPST (Individual per switch)

• Mounting: Through-hole / SMD (varies by model)

• Color: Red / Blue body with white actuator

• Insulation Resistance: ≥ 100 MΩ

• Contact Resistance: ≤ 50 mΩ

• Operating Temperature: –20°C to +85°C

• Life Cycle: 1,000+ operations per switch

Applications of 4 Way DIP Switch –

• Address Setting
  Used in communication modules (RS485, Modbus, CAN bus devices) to set device addresses.

• Mode Selection
  Enables different modes in microcontroller-based circuits, test boards, and development kits.

• Configuration Settings
  Hardware configuration in embedded systems without requiring firmware changes.

• Feature Enable/Disable
  Turn features on or off in power supplies, control systems, and consumer electronics.

• Debugging & Testing
  Used on prototype boards to inject logic HIGH/LOW signals for testing digital circuits.

• Programmable Logic Controllers (PLC) & Automation
  Set up options, logic combinations, or control parameters.

• Frequency/Timing Selection
  Used with oscillators or timers to select frequency presets.

• Security Systems
  Set ID codes or channels in remote control systems, alarms, and RF modules.

• Memory Devices & Address Decoding
  DIP switches are commonly used with memory ICs and decoders to configure address lines.

• IoT & Wireless Modules
  Select network modes, channel settings, or pairing options.

Package Contains –

1 x 4 Way DIP Switch
